RMSP Series motor starter

TYPE

DESCRIPTION

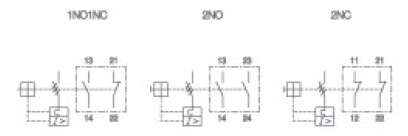

CONNECTION DIAGRAM


RMSPFX11

FRONT MOUNT AUXILIARY CONTACT

Auxiliary Switch
1NO / 1NC

• Front mounting
• 2-pole
• One front mounting module
   per circuit breaker


RMSPLX11
SIDE MOUNT AUXILIARY CONTACT

Auxiliary Switch
1NO / 1NC

• Side mounting on the left
• 2-pole
• One side mounting module
   per circuit breaker


RMSPLA

SIDE MOUNT ALARM SWITCH (1)

Any Trip Alarm Switch
1NO / 1NC

• Side mounting on the left
• 2-pole
• One side mounting module
   per circuit breaker (always
   directly fitted to the circuit
   breaker)





TYPE

DESCRIPTION

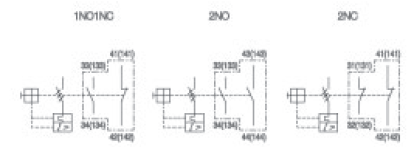

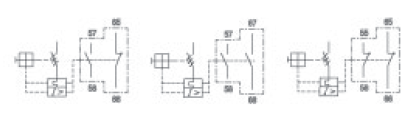

CONNECTION DIAGRAM


RMSPLAM

SIDE MOUNT ALARM SWITHC (2)

Magnetic Trip Alarm
Switch
1NO / 1NC

• Side mounting on the left
• 2-pole
• One side mounting module
   per circuit breaker (directly
   fitted to circuit breaker
   except when using with
   any Trip Alarm Switch)


RMSPRS120
SHUNT RELEASE 120V (3)

Shunt Release

• Side mounting on the right
• One side mounting
   module per circuit breaker
   (always directly fitted to
   the circuit breaker)


RMSPRU120

UNDER VOLTAGE RELEASE 120V (3)

Under voltage Release

• Side mounting on the right
• 2-pole
• One side mounting
   module per circuit breaker
   (always directly fitted to the
   circuit breaker)





TYPE

DESCRIPTION

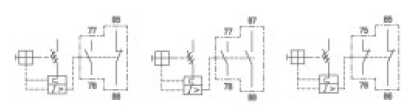

CONNECTION DIAGRAM


RMSPRUX120

UNDER VOLTAGE RELEASE W/SWITCH 120V (3)

Under voltage Release
with Switch
 (rotary handle only)

• Side mounting on the right
• Include 2NO auxiliary
   contact
• One side mounting
   module per circuit breaker
   (always directly fitted to the
   circuit breaker)



TYPE

DESCRIPTION

APPLIED TYPES


RMSPPIL 32

PUSH-IN LUG (for connection to mounting unit)

Push-In Lug

• For screwing the RMSP
  on to the mounting plates

RMSP-32H




RMSPIB 100

INSULATION BARRIER (4)

Insulation Barriers

• Insulation barriers with
  increased creepage
  distances and clearances
  for UL

RMSP-100H




RMSPDA

RMSC Contactor Adapter

• For direct connection of
  RMSP to RMSC contactor

RMSC contactors

RMSP-DA-32HA RMSC CONTACTOR ADAPTER RMSP32
RMSP-DA-63A RMSC CONTACTOR ADAPTER RMSP63
RMSP-DA-95A RMSC CONTACTOR ADAPTER RMSP95
